UI Attributes
Slider
The Slider UI Attribute is used to replace an input field with a slider component. Users can drag-and drop or click on the bar to change the value. The minimum and maximum value of the slider is determined by the domain of the variable.
The domain of the variable should have a maximum value. The INF value is not allowed.
| Used on | Variable |
| Possible values | Integer in the domain of the variable |
| Possible domains | Quantitative interval |
| Allow html | No |
How to use
- Open the Properties of the variable and click the tab "UI Attributes.
- Click on "Add".
- Select the option "Slider" from the dropdown menu.
- Press the "Add" button to add the Slider to the UI Attributes list.
- Click on "Save Changes".

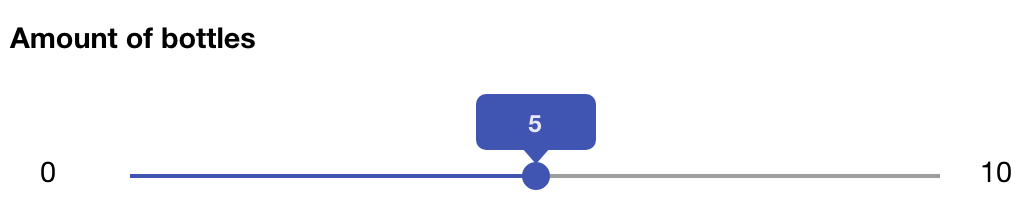

When you run the consultation in the Match Web Player you will see the slider when the variable appears on the screen. An example of the slider:
